Watchlog Wireless Temperature Sensors
Product Description

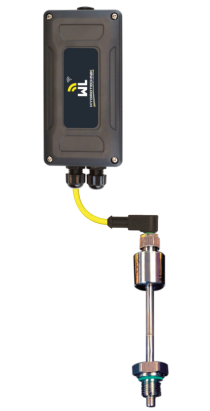

Temperature sensors fitted with Watchlog Wireless transmitters send measuring data to the BSx series signal receiving base stations. 2x AA batteries give up to 2 years of battery life. Adjust scanning and data transmission speeds via Watchlog Wireless software.
A version powered by 2xD batteries for up to 5...18Vdc is also available.
The temperature sensor tip connects directly with the fluid in a pipe, rather than taking the temperature of the external pipe temperature. Standard models are designed to work up to max. pressures of 400 bar, with 630 bar versions available on request.
Order Information
Order Code
WLWT-**-XXXX-Y.ZZReplace ** with transmitter type, XXXX with temperature range, Y with connector type (leave blank if no cable required), and Z.Z with cable length (leave blank if no cable required).
Transmitter type
| Transmitter type | *Replace XXXX with |
|---|---|
| 2xAA battery powered | AA |
| 2xD battery powered or 5...18Vdc externally powered. Requires cabling option (cannot be sensor mounted). | DD |
Temperature range
| Temperature range | *Replace XXXX with |
|---|---|
| -50...100° (160 bar max) | L510 |
| -50...100° (400 bar max) | H510 |
| -50...200° (160 bar max) | L520 |
| -50...200° (400 bar max) | H520 |
Connector type
| Connector type | *Replace XXXX with |
|---|---|
| Angled | A |
| Straight | S |
Cable length
| Cable length | *Replace XXXX with |
|---|---|
| 1.5 meters | 1.5 |
| 3.0 meters | 3.0 |
| 5.0 meters | 5.0 |
| 10.0 meters | 10.0 |
