WLB-DPG Series Watchlog Bluetooth Digital Pressure Gauge
Product Description
The Watchlog Bluetooth digital pressure gauges incorporate a high-precision pressure sensor with an accurate LCD display showing measured pressure in real-time and can transmit readings up to 100ms via Bluetooth.

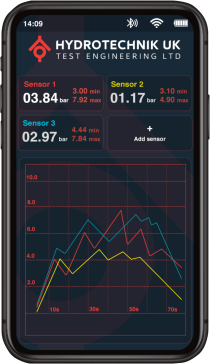

Watchlog Bluetooth App
The WLPB-DDPG supports iOS and Android Bluetooth apps. Once connected, the app can display pressure values, start/stop logging, and export CSV test files. See more in our overview video.
Technical Specifications
MEASURING RANGE
| Negative/compound pressure | Vacuum to 1 & 16 bar |
| Low pressure (on request) | 0...0.1, 0.4 & 0.6 bar |
| Medium pressure | 0...60, 160 & 250 bar |
| High Pressure | 0...400, 700 & 1000 bar |
OVERLOAD CAPACITY
| Up to 400 bar | 200% of FS |
| 700 bar | 150% of FS |
| 1000 bar | 120% of FS |
ACCURACY
| Accuracy | 0.2% FS |
OPERATING TEMPERATURE
| Operating Temperature | -20...65°C |
POWER SUPPLY VOLTAGE
| Power supply voltage | 3V (2x AA batteries) |
PRESSURE UNIT
| Pressure unit | MPa, bar, kgf, mH2O, PSI, kPa, mmHg, mBAR, mmH2O, Pa, inWC |
PROTECTION LEVEL
| Protection level | IP54 |
Order Code
WLB-DPG-XXXXReplace XXXX with the code for the required pressure range
Pressure range
| Pressure range | *Replace XXXX with |
|---|---|
| -1 to +1 bar | V001 |
| -1 to +16 bar | V016 |
| 0 to 60 bar | 0060 |
| 0 to 160 bar | 0160 |
| 0 to 250 bar | 0250 |
| 0 to 400 bar | 0400 |
| 0 to 700 bar | 0700 |
| 0 to 1000 bar | 1000 |
