Watchlog Wireless Pressure, Flow & Temperature Test Kit
Product Description
The Watchlog Wireless test kit is a portable wireless sensor test kit which allows for a user-configurable mix of pressure, temperature or flow sensors (others available on request).
Kits are designed for any combination of up to 4 sensors with supplied Windows tablet and Watchlog software allowing for numerical and graphical viewing and logging of all sensors simultaneously up to 800m.
Features
- Test pressures up to 700 bar, flow rates up to 1000 l/min & temperatures up to 200ºC
- Acquire sensor data wirelessly up to 800m distance
- Supplied with Windows tablet and receiver with Watchlog Wireless software

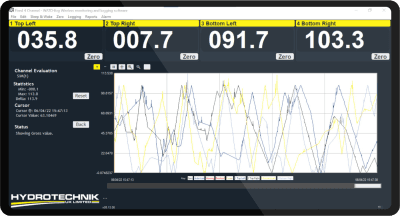

- View and log data numerically and graphically
- Powered by 2x AA batteries
- All housed in a rugged ABS IP67 carry case
Video Demo
Kit Contents
- Rugged ABS IP67 carry case
- WLW-Bsue USB wireless signal receiver
- 10" touchscreen Window tablet and keyboard with Watchlog Wireless software
User-Configurable Sensor Options
- WLWP wireless pressure sensors. Transmitters sensor mounted or 3m cable mounted. 0...25, 160, 400 and 700 bar options
- WLWT wireless temperature sensors. Transmitter sensors mounted or 3m cable mounted. -50...100°C or -50° to 200°C
- WLWF wireless turbine flow meters sensors. Transmitters 4m cable mounted. Ranges from 1 up to 1000 l/min. 420 bar max.
Order Information
Order Code
WLWTK-X-X-X-XSelect at least one and up to four sensors of your choice to configure your kit. Replace up to 4 Xs in the order code with your selections below.
Pressure sensor options
| Pressure sensor options | *Replace XXXX with |
|---|---|
| 0...25 bar, Direct mount | P025 |
| 0...25 bar, Cabled | P025C |
| 0...160 bar, Direct mount | P160 |
| 0...160 bar, Cabled | P160C |
| 0...400 bar, Direct mount | P400 |
| 0...400 bar, Cabled | P400C |
| 0...700 bar, Direct mount | P700 |
| 0...700 bar, Cabled | P700C |
Temperature sensor options
| Temperature sensor options | *Replace XXXX with |
|---|---|
| -50...+100°C, Direct mount | T510 |
| -50...+100°C, Cabled | T510C |
| -50...+200°C, Direct mount | T520 |
| -50...+200°C, Cabled | T520C |
Flow meter options
| Flow meter options | *Replace XXXX with |
|---|---|
| 1...10 l/min | F0010C |
| 7.5...75 l/min | F0075C |
| 15...300 l/min | F0300C |
| 25...600 l/min | F0600C |
| 45...1000 l/min | F1000C |
