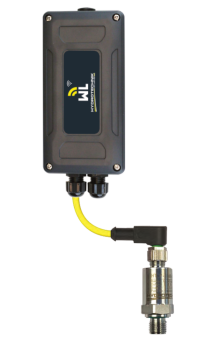

Watchlog Wireless Pressure Sensors

Product Description

Pressure sensors fitted with Watchlog Wireless transmitters send measuring data to the BSx series signal receiving base stations. 2xAA batteries give up to 2 years of battery life. Adjust scanning and data transmission speeds via Watchlog Wireless software.

A version powered by 2xD batteries for up to 5...18Vdc is also available.

Pressure transducers are supplied with 1/4" BSP male connections or can be supplied with an adaptor to connect on to Minimess test points for safe connection and disconnection.

Order Information

Order Code

WLWP-**-XXXX-Y.ZZ

Replace ** with transmitter type, XXXX with pressure range, Y with connector type (leave blank if no cable required), and Z.Z with cable length (leave blank if no cable required).

Transmitter type

Transmitter type	*Replace XXXX with
2xAA battery powered	AA
2xD battery powered or 5...18Vdc externally powered. Requires cabling option (cannot be sensor mounted).	DD

Pressure range

Pressure range	*Replace XXXX with
0...25 bar	0025
0...60 bar	0060
0...160 bar	0160
0...250 bar	0250
0...400 bar	0400
0...700 bar	0700

Connector type

Connector type	*Replace XXXX with
Angled	A
Straight	S

Cable length

Cable length	*Replace XXXX with
1.5 meters	1.5
3.0 meters	3.0
5.0 meters	5.0
10.0 meters	10.0
