SENSE3 Gateway Kit
Product Description

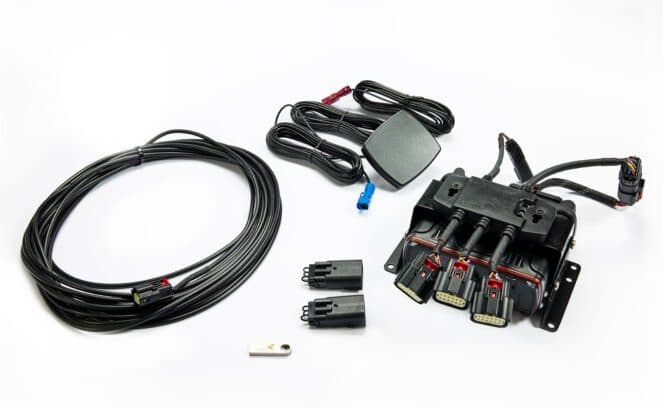

SENSE-3 is a scalable data monitoring & analysis solution giving you access to both live and historic data using any online M2M/IoT monitoring system, such as Tan Delta Online. Consisting of an IoT Gateway, mounted with Tan Delta's modular Gateway Hub system to form 1 single small footprint unit, the SENSE-3 Gateway Kit allows up to 3x OQSx-G2 sensors to be connected out of the box, with option to upgrade the system to 16x sensors by connecting multiple Gateway Hubs (sold separately) to the SENSE-3 unit, therefore catering for large multi-asset systems where timing of maintenance intervals is crucial.
SENSE-3 enables data transmission using a variety of methods depending upon location and network availability. These include Cellular, WiFi and Ethernet.

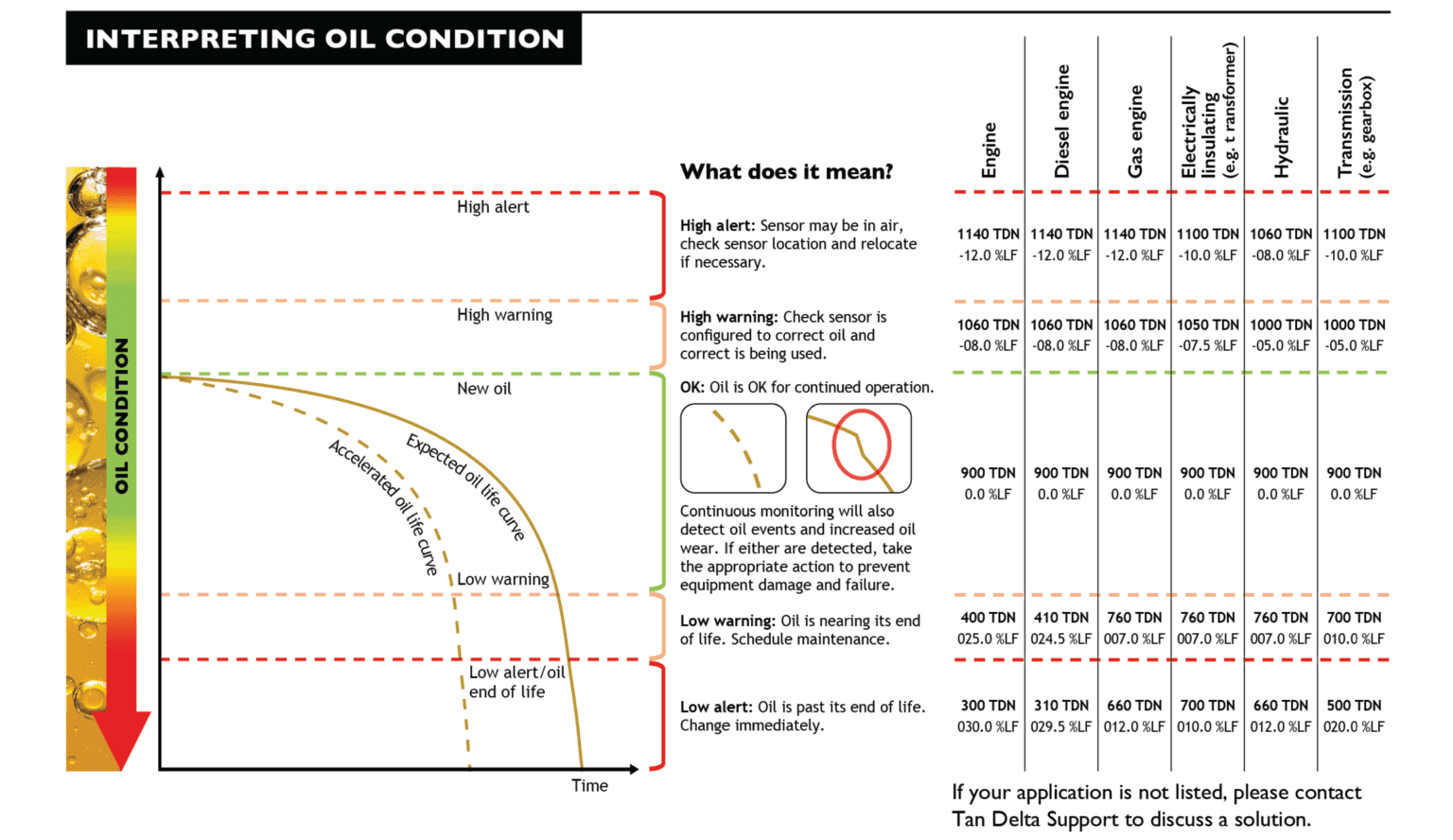

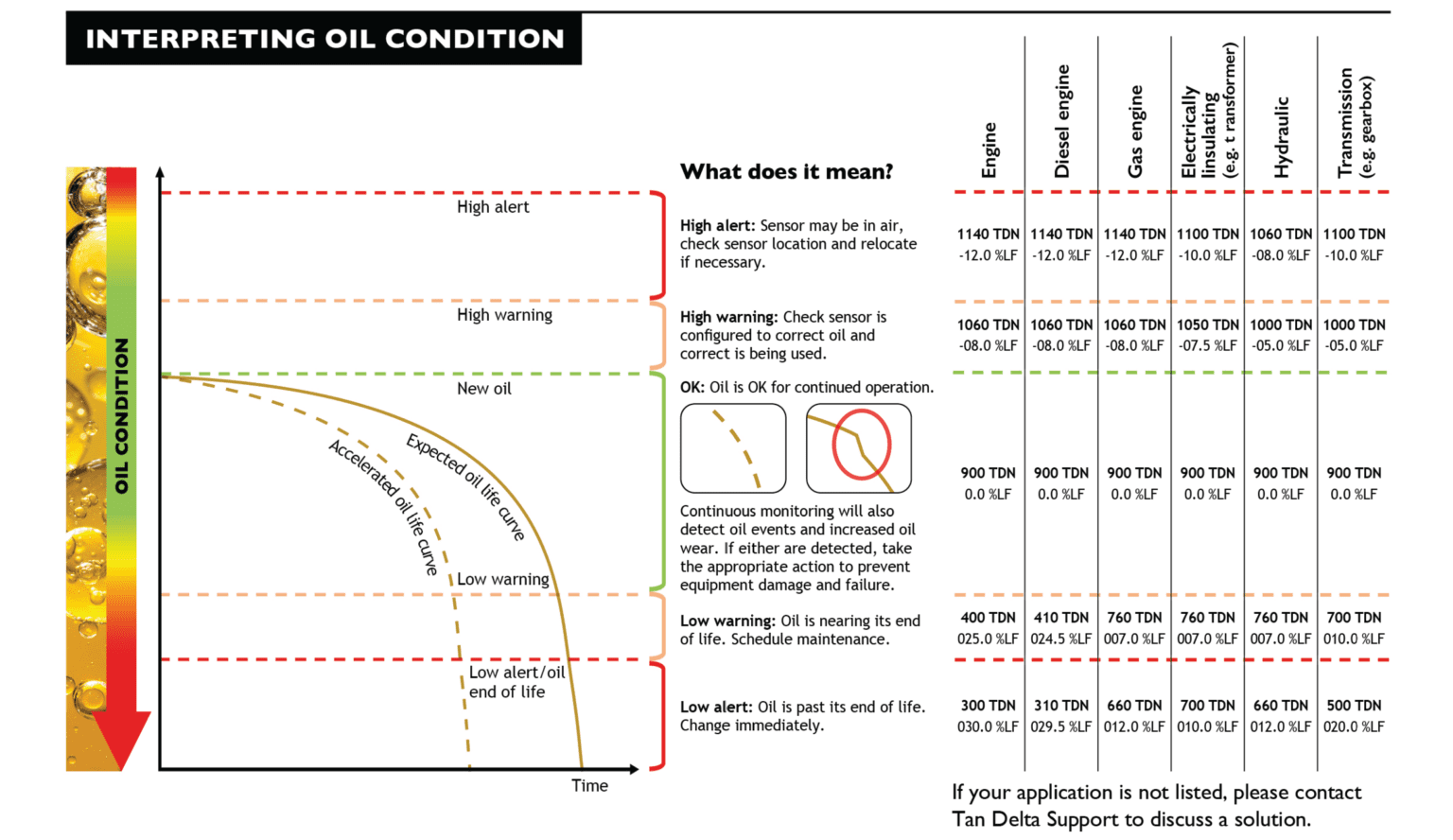

Oil Interpreting Guide
Technical Specifications
PRODUCT INFORMATION
| Name | SENSE-3 Gateway Kit |
| Product Number | SENSE-3 |
PHYSICAL
| Enclosure | Glass reinforced plastic |
| Dimensions | 140mm x 100mm x 35mm (L x W x H) |
| Weight | 300g |
CONNECTIONS
| Antenna Connector | SMA (x2 antenna) |
| System Connector | 1 to 7 RJ45 (3 x 5B pins) |
| Other | Modem Sim slot Micro SD slot USB Port 2.0 Reset button Ethernet RJ-45 socket |
GSM & GPRS
| GSM | GSM 850 + 900B 1800 + 1900MHz + 2G Quad GPRS + EDGE + 3G Class 1 (1W) + EDGE + 3G GSM Max EDGE |
| GPRS | GPRS Class B, Class B (Class B) SMS MT, MO, Text, PST SMS GST + SG2 Optional Carrier IDS and LTE via support |
GNSS POSITIONING
| Receiver | GPS L1 Frequency L-2A mode, 50 channels continuous tracker receiver GLO L1 1.5 generations and 50 GNSS Ready |
| SBAS | WAAS, EGNOS, MSAS, GAGAN |
| Accuracy | 2.5 meters CEP |
| Signal Acquisition | Cold Start: 35 sec. Warm Start: 28 sec. Hot start: < 1 sec Tracking sensitivity: < 160 dBm |
POWER
| Supply | 9V to 30V |
| Batteries | Standard backup battery for RTC Optional Li-Ion backup battery Optional rechargeable Battery Li-ion 17v (4.1 nominal 3600mAh Integrated Low Battery Alert |
SYSTEM SPECS & CPU
| ARM Cortex A8 | 800MHz clock speed |
| LINUX OS | Yocto 2.1 |
| RAM | 512MB DDR2 |
| NAND Flash | 1GB |
| Additional Storage | 32GB via MicroSD Card |
ENVIRONMENTAL
| Storage Temperature | -40°C (-40°F) to +85°C (+185°F) |
| Operating Temp Off | -30°C (-22°F) to +70°C (+158°F) |
| Operating GSM On | -30°C (-22°F) to +60°C (+140°F) |
| Li-Ion Battery | -20°C to +50°C (+14°F to +122°F) (recommended 0°C to +40°C, +32°F to +104°F) |
STANDARDS & CERTIFICATION
| Conformity | CE Marked FCC Authorisation encapsulated IC Certification R & TTE RoHS Compliant |
