Gateway (OQTg)

Product Description

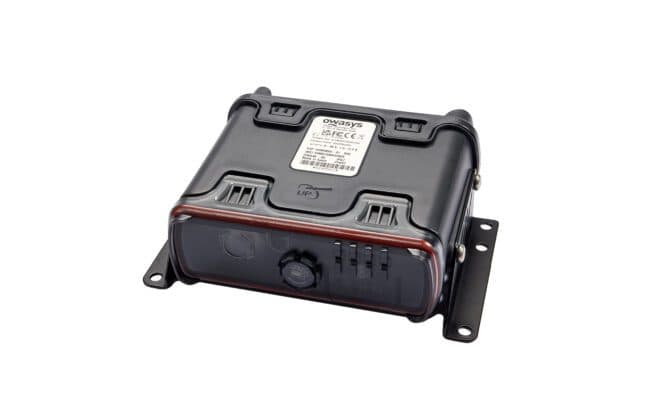

The Oil Quality Telemetry Gateway (OQTg) is a sophisticated industrial IoT Gateway device that enables data from OQSx-G2 sensors to be accessed using any online IoT monitoring system such as Tan Delta Online.

The Oil Quality Telemetry Gateway (OQTg) is a sophisticated industrial IoT Gateway device that enables data from your OQSx-G2 sensors to be accessed using any online M2M/IoT monitoring system, such as Tan Delta Online.

The Gateway enables data transmission using a variety of methods depending upon location and network availability. These include Cellular, WiFi and Ethernet.

Every equipment operator knows that machine monitoring enables effective management and thus increased reliability, efficiencies and profits. Oil condition monitoring with Tan Delta takes this to a new level through much greater insight into the real condition of your equipment to deliver significantly enhanced financial and operating benefits.

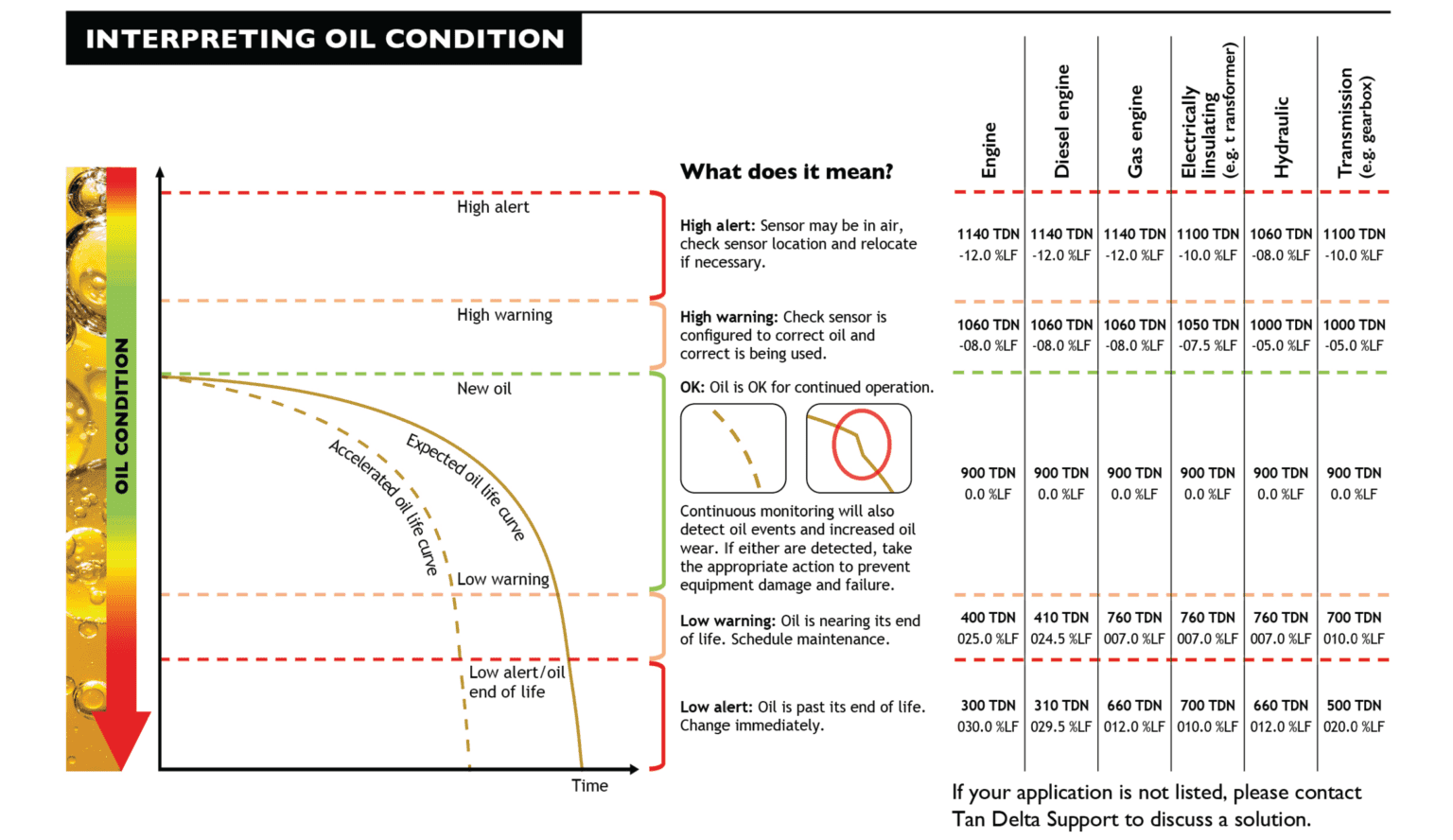

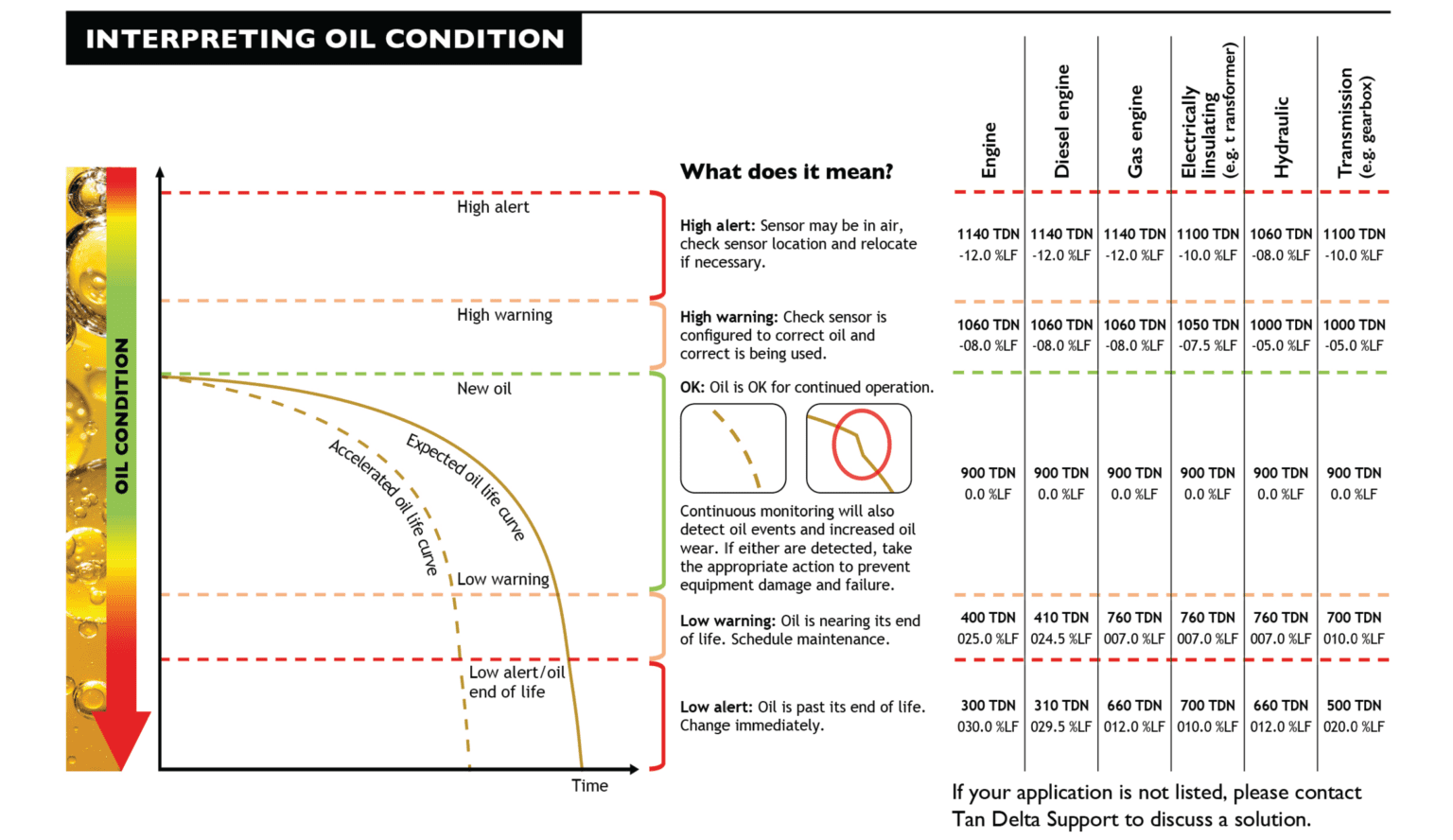

Oil Interpreting Guide

Technical Specifications

PRODUCT INFORMATION

Name	Oil Quality Telemetry Gateway
Product No.	OQTg-1G

PHYSICAL

Enclosure	Glass reinforced plastic

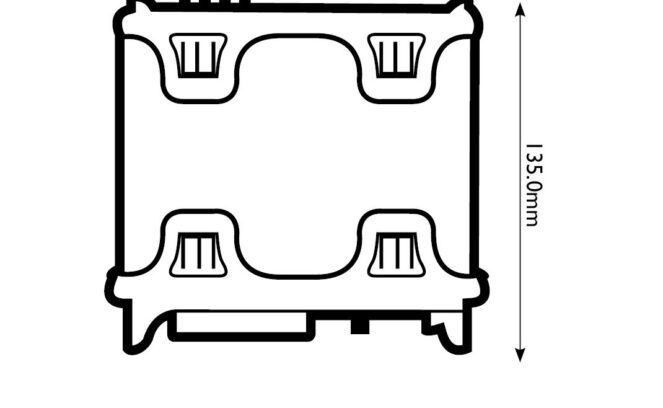

Dimensions	140mm x 100mm x 35mm (L x W x H)
Weight	300g

CONNECTIONS

Antenna Connector	SMA (x2 antenna)
System Connector	1 to 7 RJ45 (3 x 5B pins)
Other	Modem Sim slot Micro SD slot USB Port 2.0 Reset button Ethernet RJ-45 socket

GSM & GPRS

GSM	GSM 850 + 900/900 + 1800/1900 + 2G/900MHz Quad GPRS + EDGE + 3G Class 1 (1W) + EDGE + 3G GSM Max EDGE
GPRS	GPRS Class B, Class B (8+1/5+2) SMS MT, MO, Class 1 (5V) SMS SMT + MO2 Optional Carrier 100 and LTE via support

GNSS POSITIONING

Receiver	GPS L1 Frequency L-2A mode, 50 channels continuous tracker receiver GLO L1 1.5 generations and 50 GNSS Ready
SBAS	WAAS, EGNOS, MSAS, GAGAN
Accuracy	2.5 meters CEP
Signal Acquisition	Cold Start: 35 sec. Warm Start: 28 sec. Hot start: < 1 sec Tracking sensitivity: < 160 dBm

POWER

Supply	9V to 28V
Batteries	Standard backup battery for RTC Duration: 10 years Optional rechargeable Battery Li-ion 3.7V (4.1 nominal 3600mAh Integrated Low Battery Alert

SYSTEM SPECS & CPU

ARM Cortex A8	800MHz clock speed
LINUX OS	Yocto 2.1
RAM	512MB DDR2
NAND Flash	1GByte
Additional Storage	32GB via MicroSD Card

ENVIRONMENTAL

Storage Temperature	-40°C (-40°F) to +85°C (+185°F)
Operating GSM Off	-30°C (-22°F) to +70°C (+158°F)
Operating GSM On	-30°C (-22°F) to +60°C (+140°F)
Li-Ion Battery	-20°C to +50°C (+14°F to +122°F) (recommended 0°C to +40°C, +32°F to +104°F)

STANDARDS & CERTIFICATION

Conformity

CE Marked FCC Authorisation encapsulated IC Certification R & TTE RoHS Compliant
