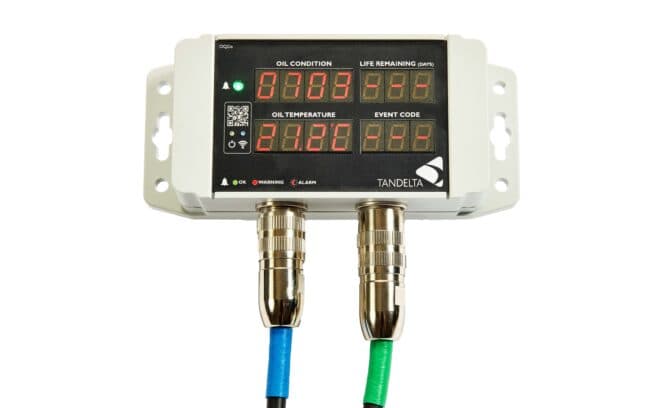

OQDe-G2 Display Express
Product Description
The Oil Quality Display Express (OQDe) allows you to Display, Log, & Analyse data from OQSxG2 Sensors. Comes bundled with Insight, a web-based app allowing configuration of alerts & warnings.
The Display Express (OQDe) is an oil condition data display and logging solution designed for plug-and-play compatability with all Tan Delta real-time oil condition sensors.
Real-time oil condition is clearly displayed in either Loss Factor (%) or Tan Delta Number (TDN), along with current oil temperature, providing you with an instant and accurate snapshot of the condition of your oil and equipment. Oil Life Remaining (days) enables easy prediction and therefore planning of when maintenance is needed.
Display Express logs all data and is provided with our INSIGHT application, which enables you to connect any device to Display Express wirelessly, and to download and display data.
OQDe is engineered for installation and continuous use in even the most extreme industrial or commercial environment. Quick and simple to install and easy to use.

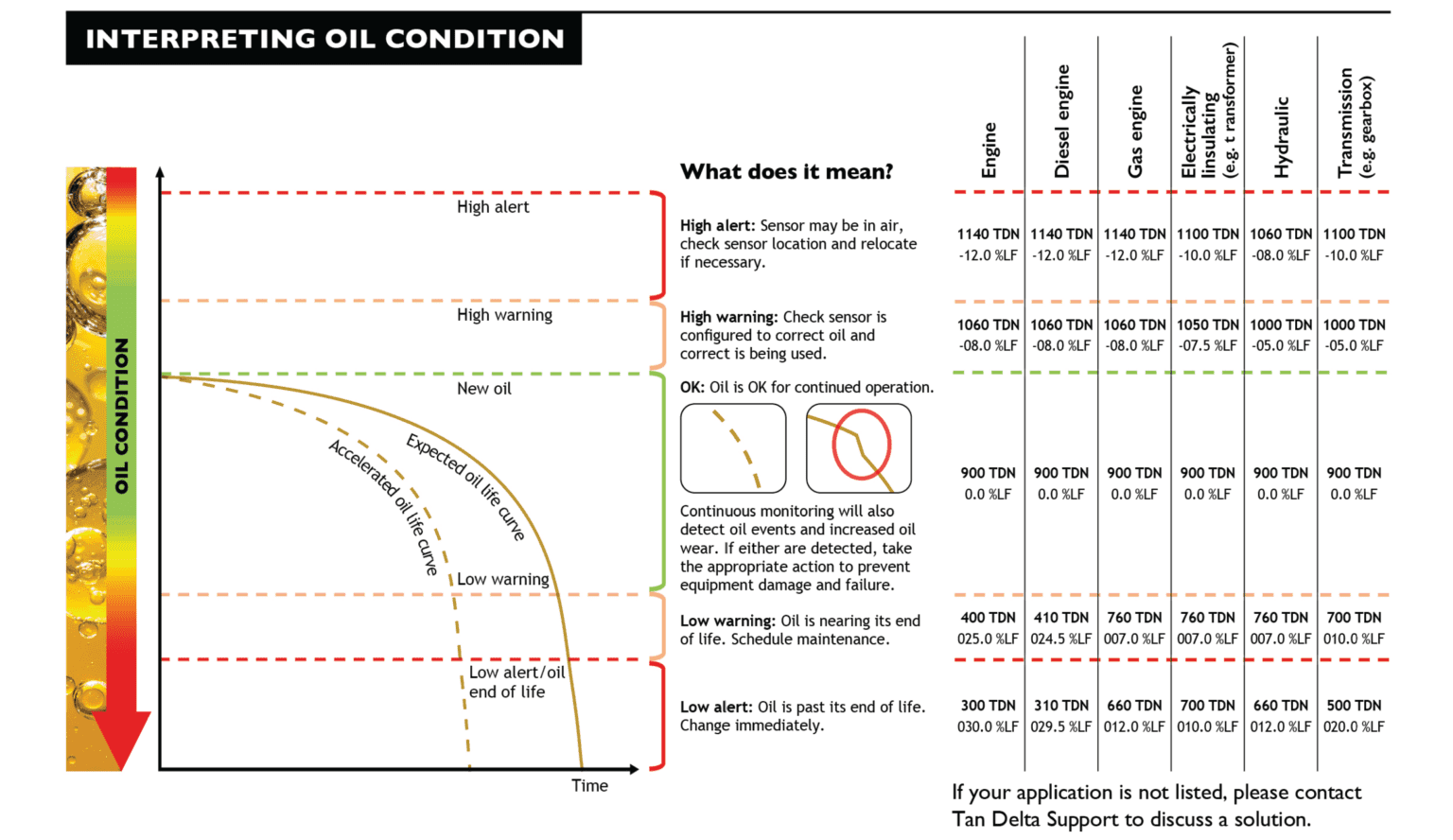

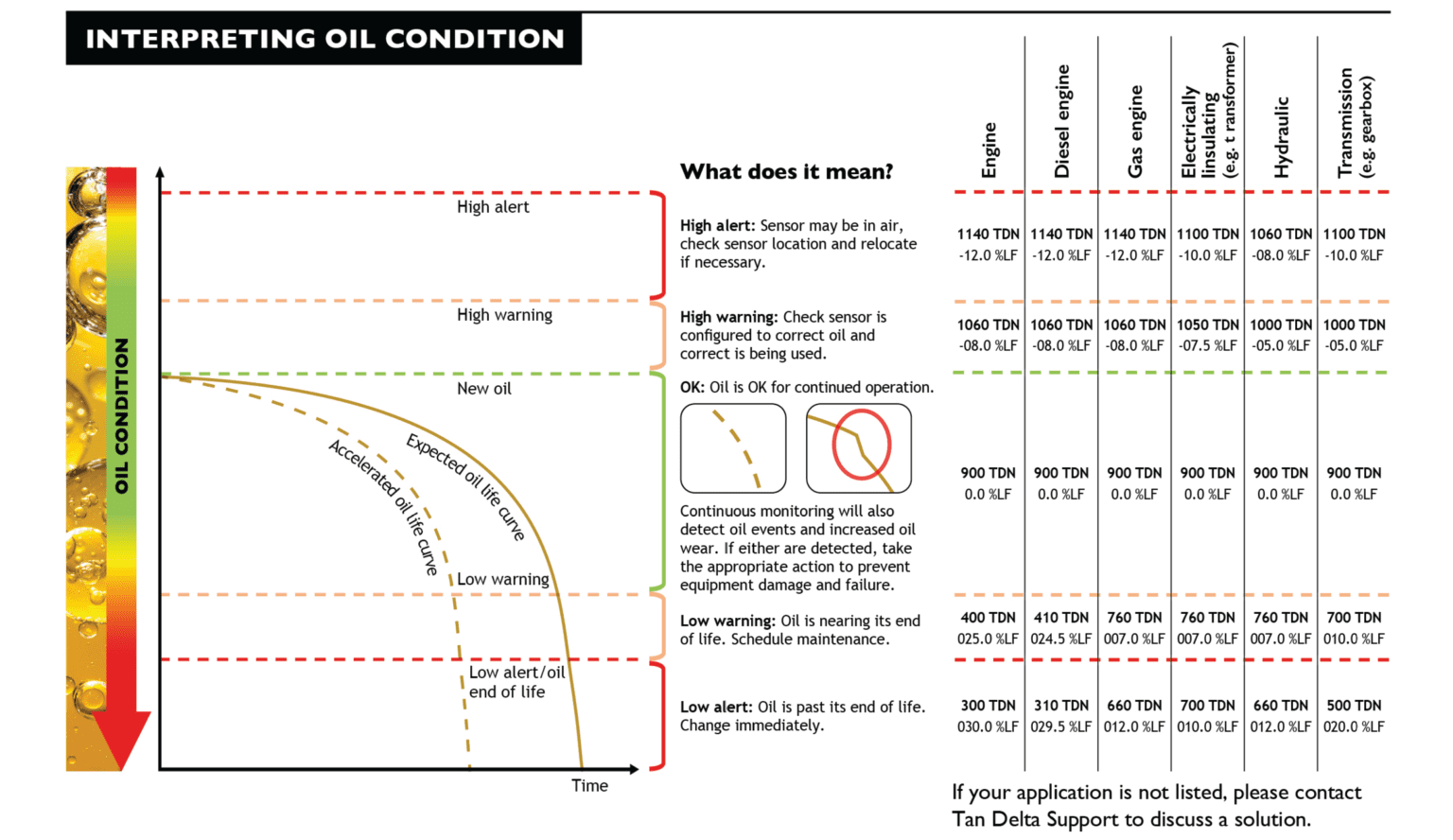

Oil Interpreting Guide
Technical Specifications
PRODUCT INFORMATION
| Name | Display Express (OQDe) |
| Product Number | Express |
PHYSICAL
| Material | Heat resistant polycarbonate |
| Dimensions | 151mm x 60mm x 12mm (L x W x H) |
| Weight | 300g |
ELECTRICAL
| Supply | +9-30 V DC |
| Consumption | 0.4W Average, Continuous 200mA |
DATA OUTPUT / INPUT
| Analog Output | 1 x 4-20mA |
| Digital Output: +/RS485, 9600 baud half duplex to sensor +/RS485, 115200 baud half duplex from display |
DATA LOGGING
| Logging Interval | 5 minutes |
| Battery Backup | ~10 years |
| Data Download | Via WiFi using any internet-enabled device |
| Real Time Clock | Yes |
DISPLAY
| Oil Quality | Tan Delta Number (TDN) |
| Oil Temperature | -20°C (-4°F) to +120°C (+248°F) |
| Oil life remaining | Days |
| Status Indicator | LED |
ENVIRONMENTAL
| Operating Temperature | -30°C (-22°F) to +65°C (+149°F) |
STANDARDS & CERTIFICATION
| Water & Dust | IP67 when connected BS EN 60529:1992+A2:2013 |
| Shock & Vibration | BS EN 60068-2-30 (Test Db - Cyc.Hum.) BS EN 60068-2-6 (Test Fc - Sine Vib.) BS EN 60068-2-27 (Test Ea - Mech.Shock) |
| EMC | EN 61000-6-4:2007 (Generic Emissions Standard for Industrial Environments) EN 61000-6-2:2005 (Generic Immunity Standard for Industrial Environments) EN 61000-6-2:2007 (Generic Immunity Standard for Industrial Environments) |
| Conformity | CE & UKCA Marked RoHS Compliant |
