OQSX-G2 Sensor kit
Product Description
An OQSX-G2 Sensor kit for installations connecting to an existing monitoring system or local display. Includes the OQSx-G2 sensor and CADS configuration pack.

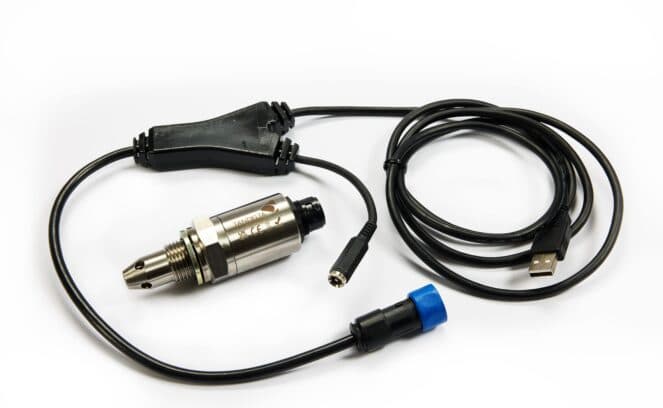

SENSE-1 includes our OQSx-G2 real time oil analysis sensor, and our CADS sensor configuration pack which can be used to configure all Tan Delta sensors. The CADS configuration kit enables you to configure the sensor to the correct oil type and application and set the data output format that matches your target display.
OQSx-G2 analyses oil in real time at a molecular level (0.001% accuracy), detecting, analysing and measuring changes caused by wear, contamination or mechanical issues with the equipment itself. This information enables you to significantly cut maintenance costs through using oil fully to the end of its life, undertaking maintenance when actually needed and reducing break downs.
Once you have configured the OQSx-G2 to the target oil in your equipment using the CADS kit, you can install and connect it to your desired display to see the oil analysis data. You can retain the CADS kit for future use and means that you only need buy the sensor without a CADS kit in the future.

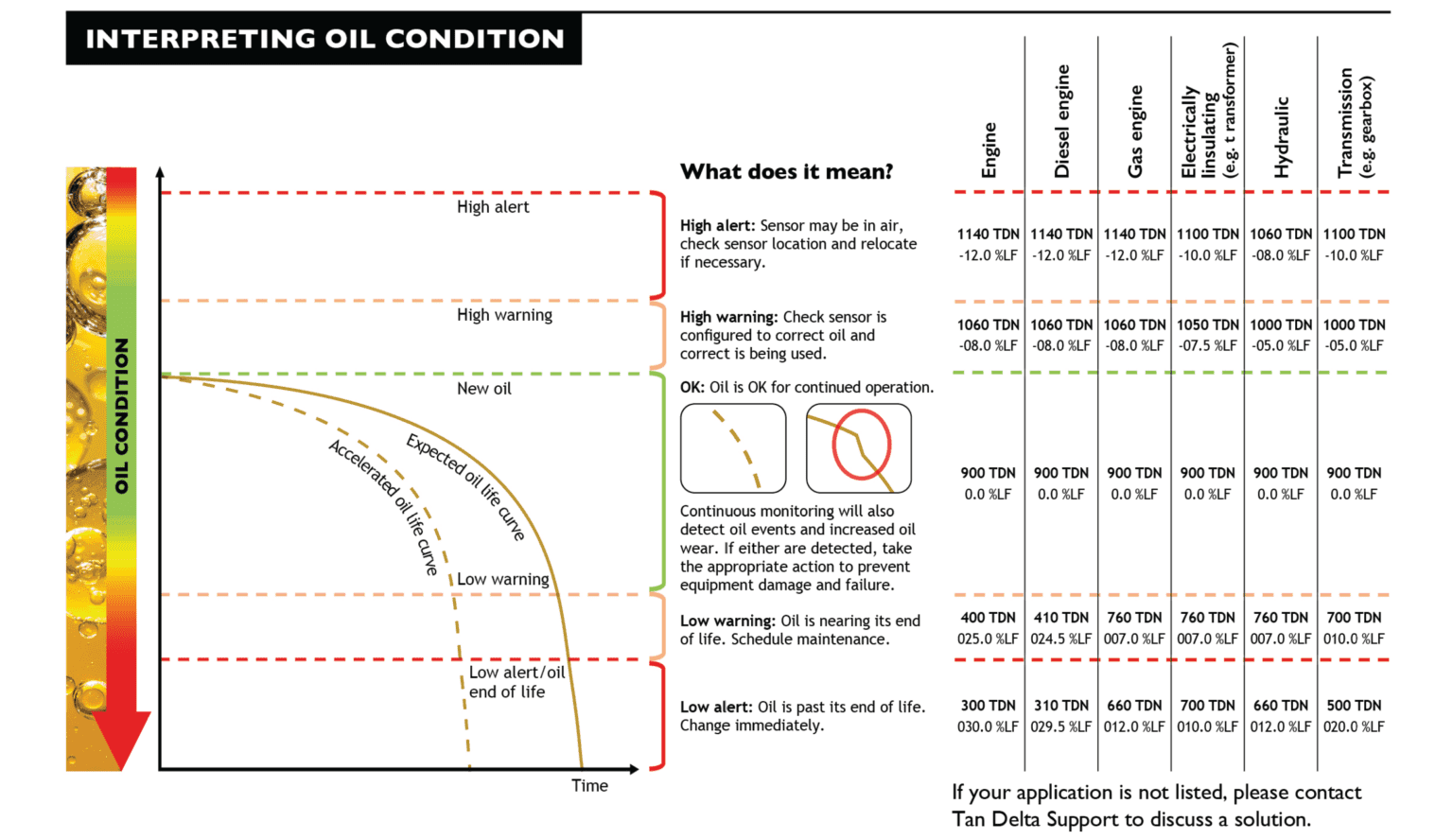

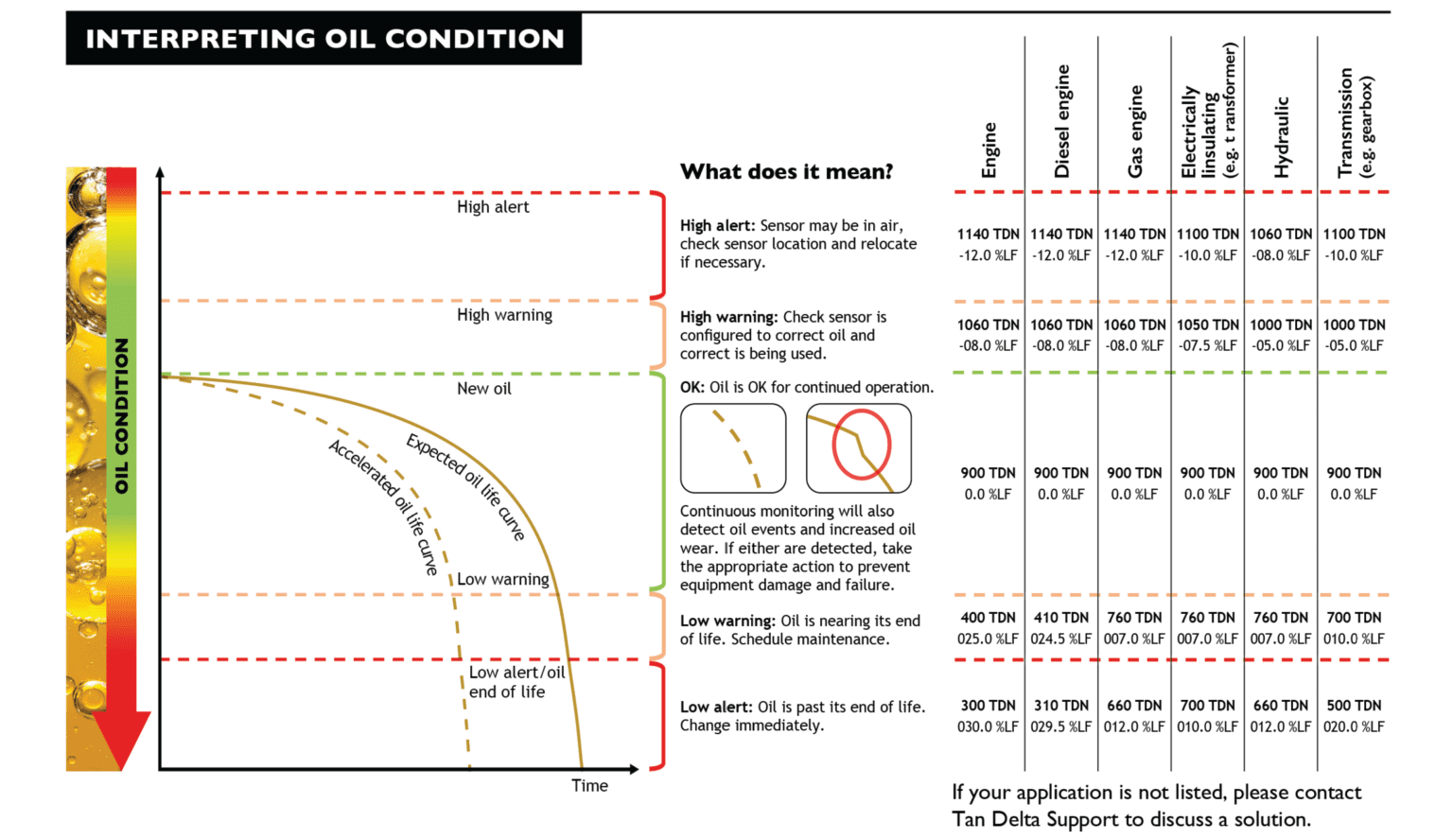

Oil Interpreting Guide
Technical Specifications
PRODUCT INFORMATION
| Name | Gen 2 - Oil Quality Sensor |
| Product Number | OQSxG2-1-XX-XX-5 |
PHYSICAL
| Material | Stainless Steel AISI304 |
| Dimensions | 102 x 36mm (L x W) |
| Weight | 180g |
| Connection | 32mm AF Hex Collar |
| Torque | 25N m |
AVAILABLE THREADS
| 1/2" BSPP | Dowty Type |
| 1/2" NPT | n/a |
| 7/8" UNF | 'O' Ring |
| M18 | Dowty Type |
CONNECTORS
| Connector | 6-Pin Bulgin PXP4013/06P/PC |
ELECTRICAL
| Supply | +9-30V DC |
| Consumption | 0.4w Average |
DATA OUTPUT/INPUT
| Digital Output | RS485, CANbus |
| Protocols Supported | Modbus, CanOpen and J1939 |
| Analog Output | 4-20mA |
OIL QUALITY DETECTION PARAMETERS
| Output | Tan Delta Number (TDN) Oil Temperature (C or F) |
| Sensitivity | 0.01% |
| Elements | All wear and contamination |
ENVIRONMENTAL
| Operating temperature | -40°C (-40°F) to +120°C (+248°F) |
| Calibrated temperature | -20°C (-4°F) to +120°C (+248°F) |
| Fluid temperature | -40°C (-40°F) to +120°C (+248°F) |
| Fluid pressure | Up to 70 bar (1015 psi) |
| Storage temperature | -55°C (-67°F) to +150°C (+302°F) |
STANDARDS AND CERTIFICATION
| Water and dust | IP68 when connected |
| Shock and vibration | BS EN 60068-2-30 (Test Db - Cyc.Hum.) BS EN 60068-2-6 (Test Fc - Sine Vib.) BS EN 60068-2-27 (Test Ea - Mech. Shock) |
| EMC | EN 61000-6-4:2007 (Generic Emissions Standard for Industrial Environments) EN 61000-6-2:2005 (Generic Immunity Standard for Industrial Environments) |
| Conformity | CE Marked RoHS Compliant |
