Cables

Complete range of cables for TanDelta oil condition monitoring systems. Each cable type is designed for specific applications and environments.

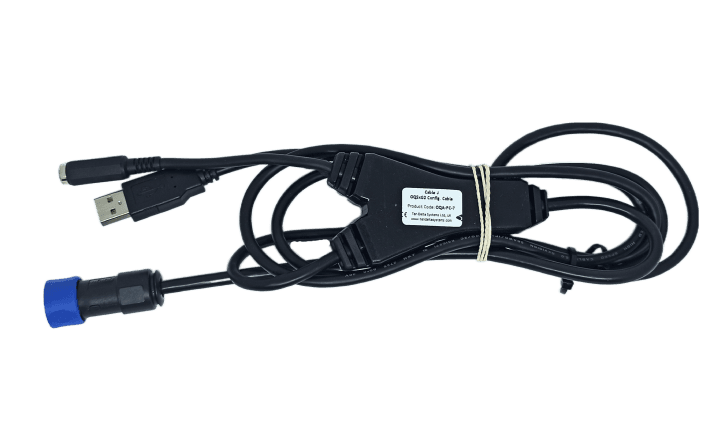

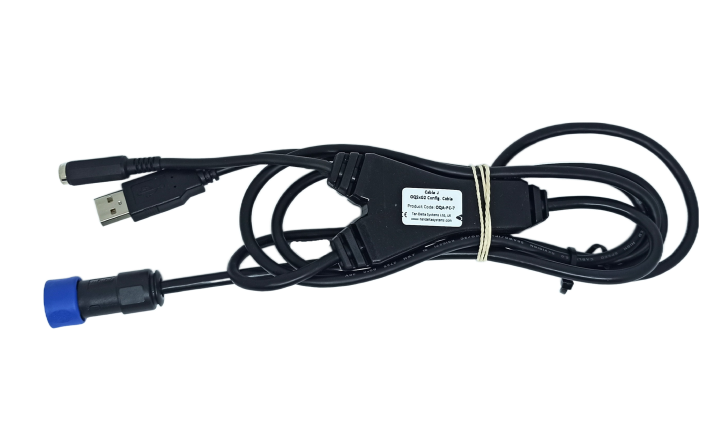

Cable J

Configuration Cable

Length: 1m
Diameter: 5.0mm Spring 5.0mm
Material: PVC
Connector 1: USB-A Plug
Connector 2: Bulgin PNG/01/CON/4090/X3
Connector 3: 2.1mm Barrel Power Socket

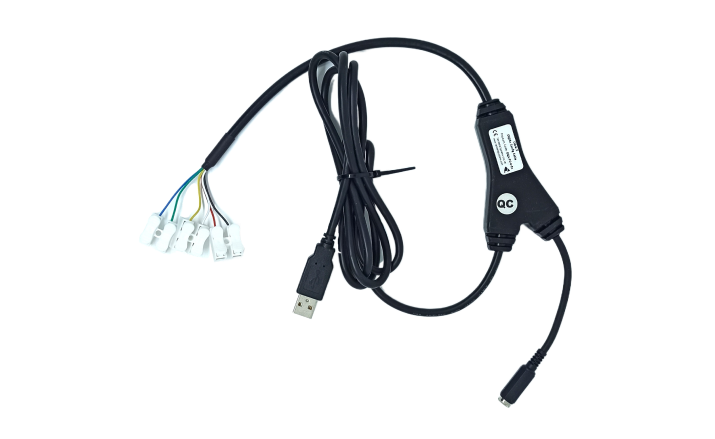

Cable X

In-Service Configuration Cable

Length: 1m
Diameter: 5.0mm Spring 5.0mm
Material: PUR
Connector 1: USB-A Plug
Connector 2: 2-Way Spring Wire FEMALE
Connector 3: 2.1mm Barrel Power Socket

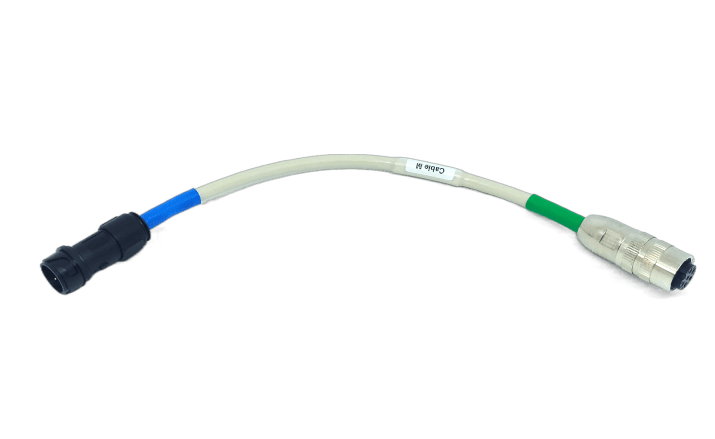

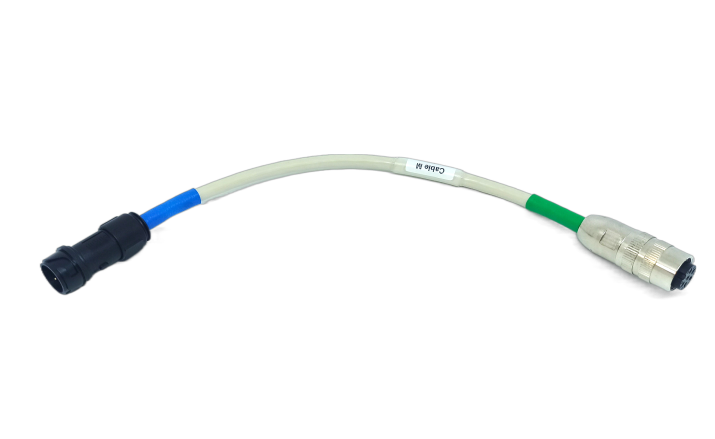

Cable M

Supply In-Service Cable

Length: 1m
Diameter: 6.0mm
Material: PUR
Connector 1: Bulgin PNG/01/CON/4090/X3
Connector 2: Luer/Lock/1B-16
Connector 3: N/A

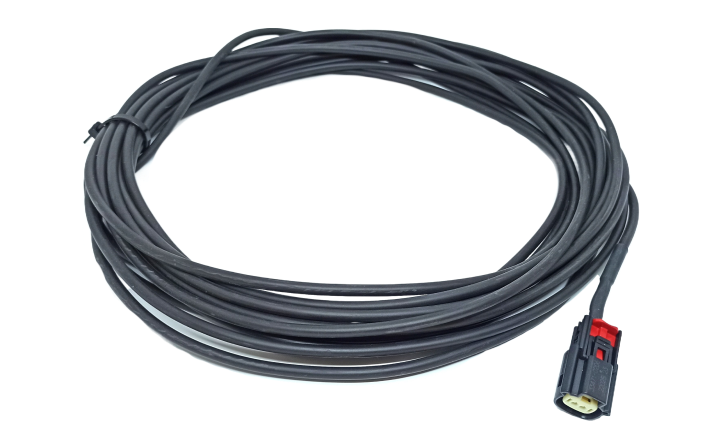

Cable HP

High Pressure Multi-Purpose Cable

Length: 1m
Diameter: 5.7mm
Material: PVC
Connector 1: Molex 33471-0405
Connector 2: N/A
Connector 3: N/A

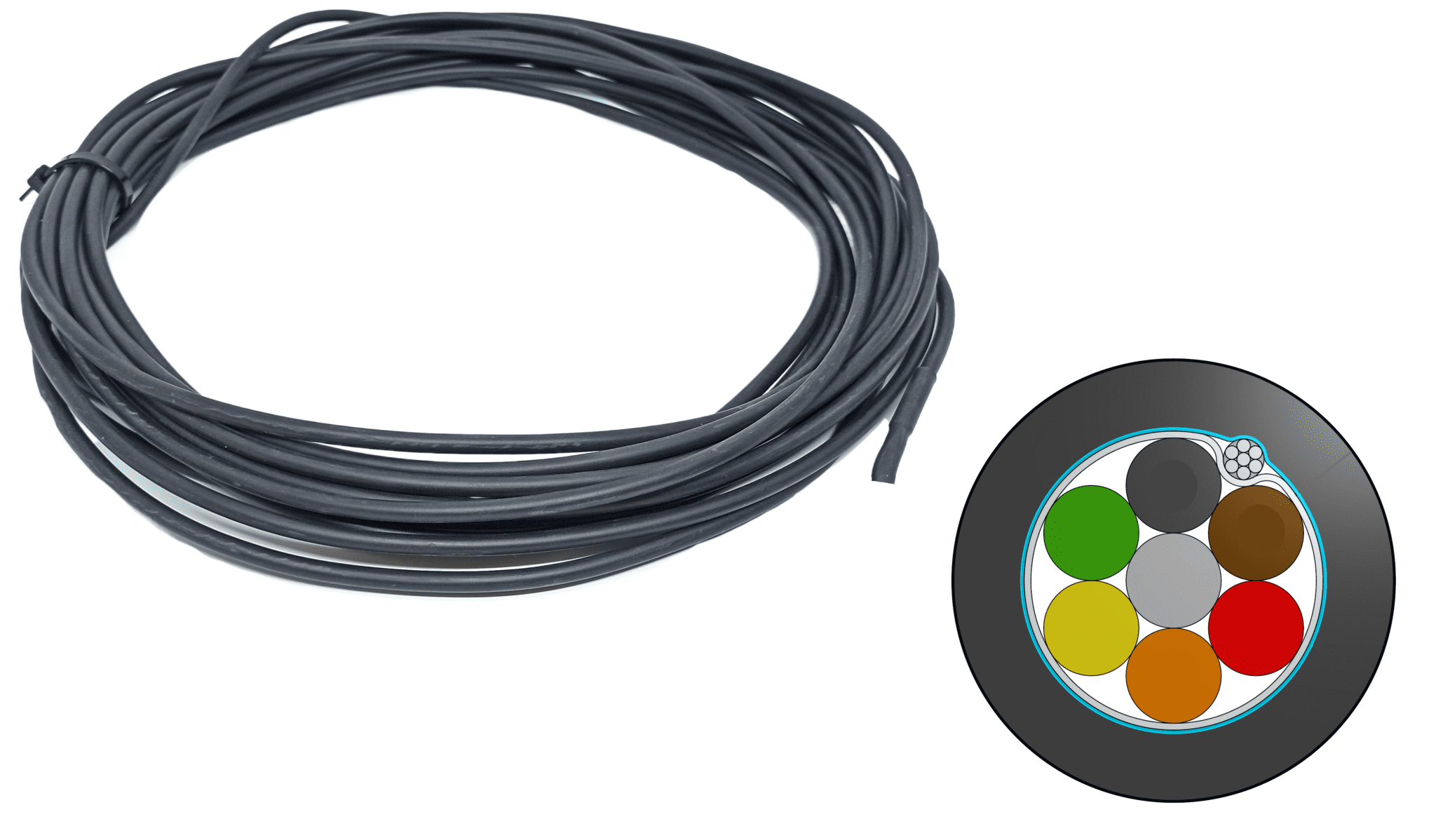

Cable BBHaz

Gateway Data Cable (Hazardous)

Length: 1m
Diameter: 6.0mm
Material: PUR
Connector 1: N/A
Connector 2: N/A
Connector 3: N/A

Cable BBSt

Gateway Data Cable (Standard)

Length: 1m
Diameter: 6.0mm
Material: PUR
Connector 1: N/A
Connector 2: N/A
Connector 3: N/A

Cable DB

Display to Base Bridge Cable

Length: 1m
Diameter: 6.0mm
Material: PUR
Connector 1: Luer/Lock/1B-16
Connector 2: N/A
Connector 3: N/A

Cable HB

Gateway Hub to Base Bridge Cable

Length: 1m
Diameter: 6.0mm
Material: PUR
Connector 1: Molex 33472-0405
Connector 2: N/A
Connector 3: N/A

Cable GH

Gateway Hub to Gateway Cable

Length: 1m
Diameter: 5.0mm
Material: PUR
Connector 1: Molex 33472-1006
Connector 2: Molex 33472-1006/-J7PW1+
Connector 3: N/A

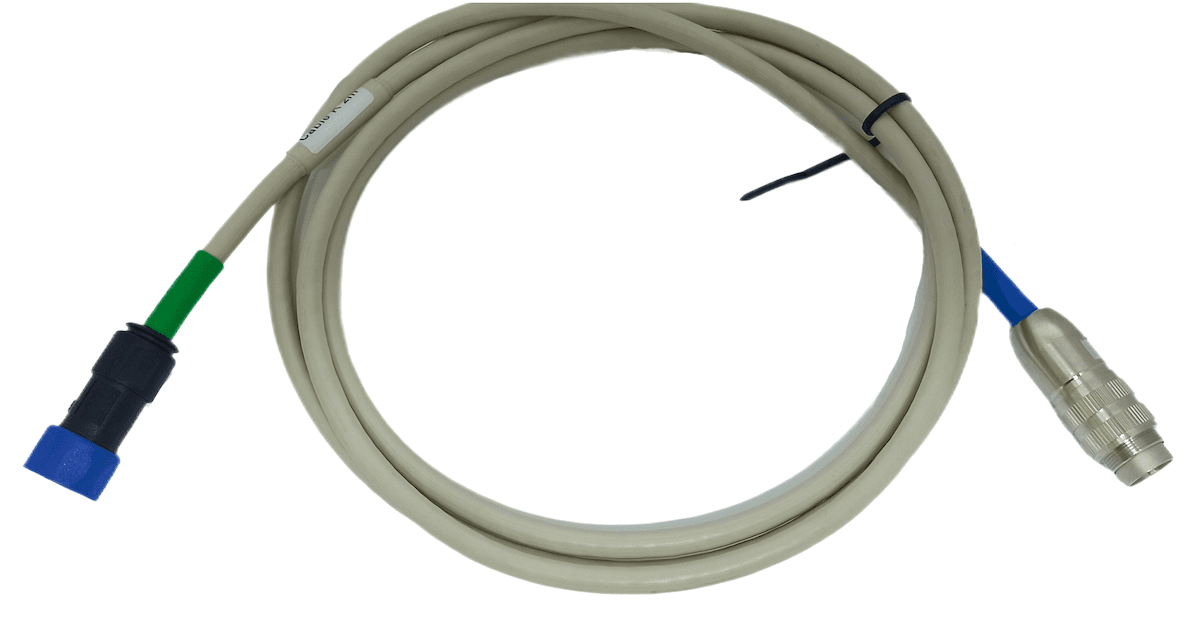

Cable SD

Sensor to Display Cable

Length: 1m
Diameter: 6.0mm
Material: PUR
Connector 1: Bulgin PNG/01/CON/4090/X3
Connector 2: Luer/Lock/1B-16
Connector 3: N/A

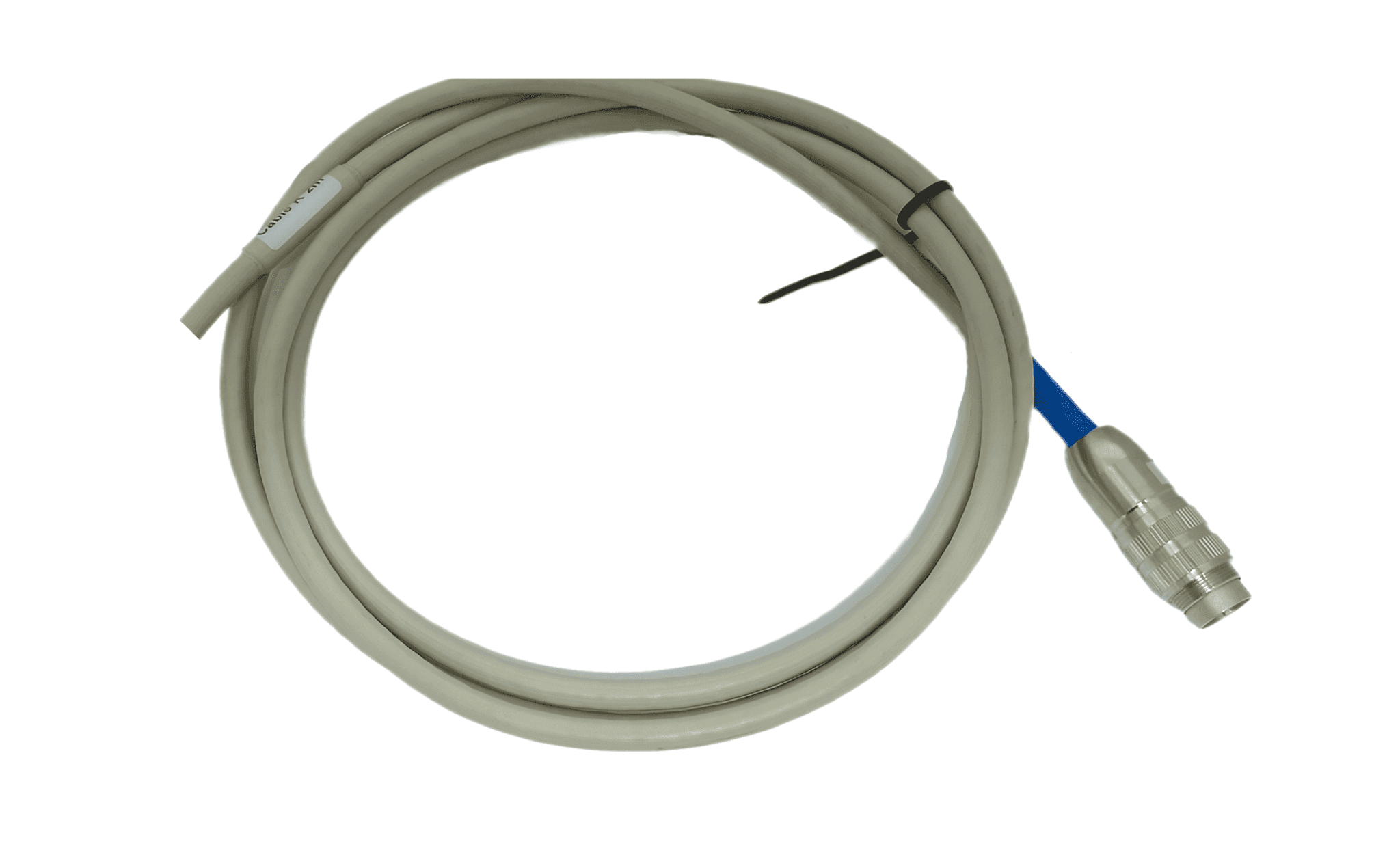

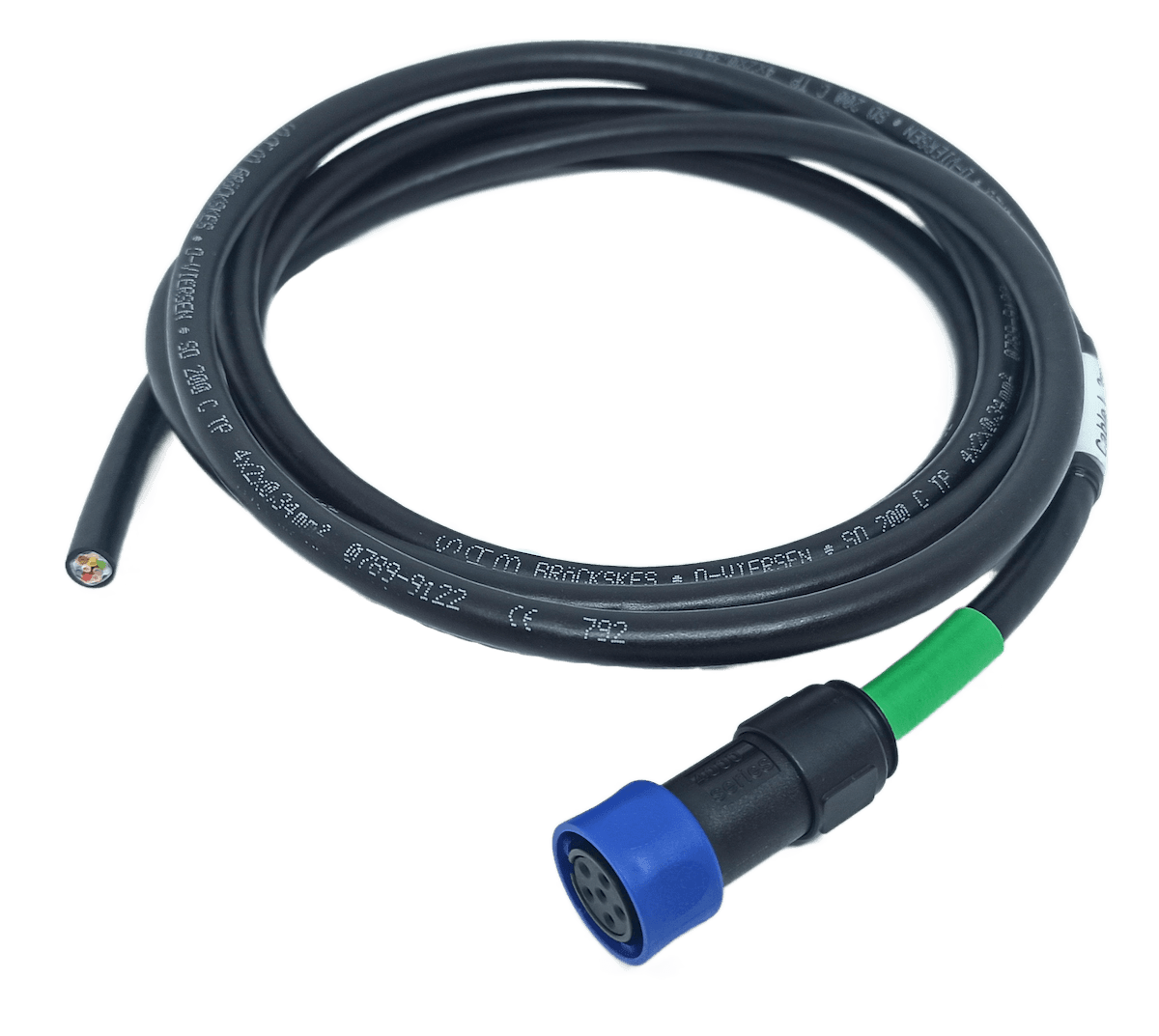

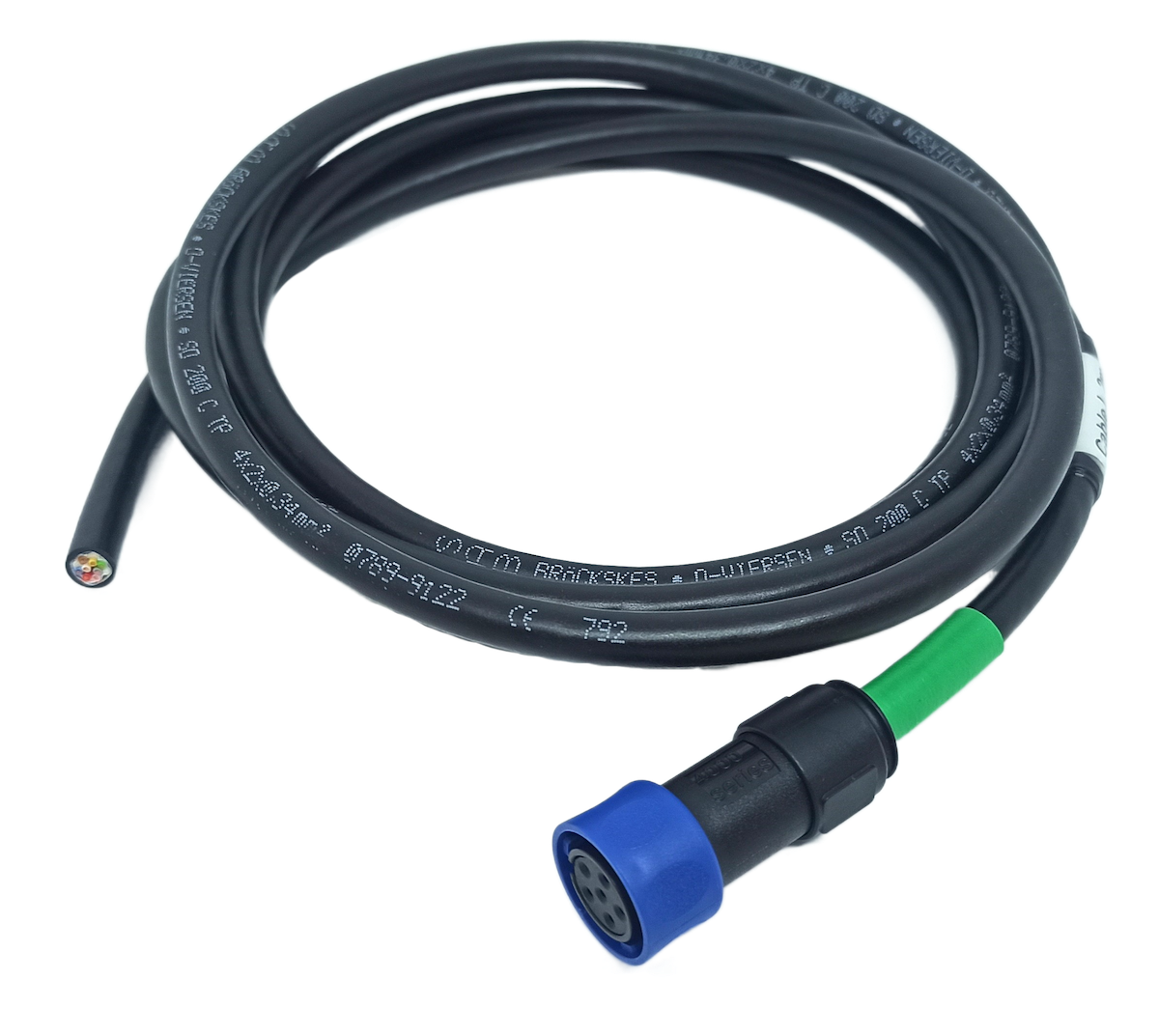

Cable SB

Sensor to Base Bridge Cable

Length: 1m
Diameter: 6.0mm
Material: PUR
Connector 1: Bulgin PNG/01/CON/4090/X3
Connector 2: N/A
Connector 3: N/A

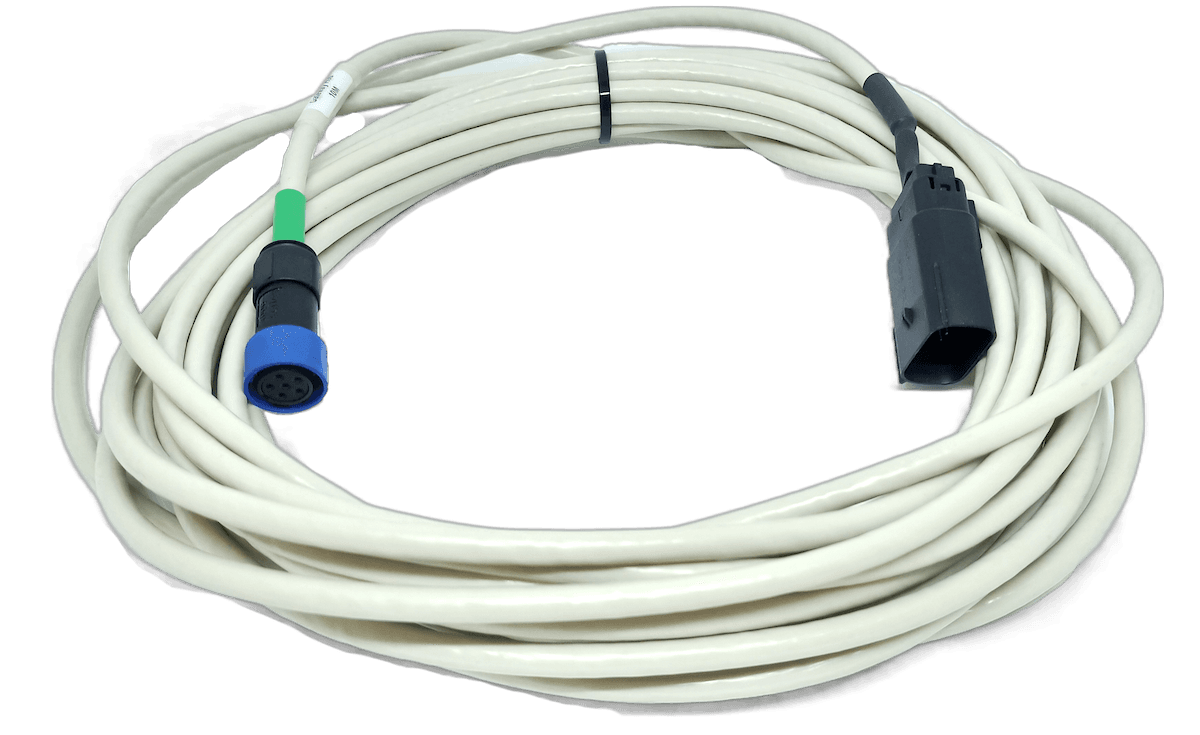

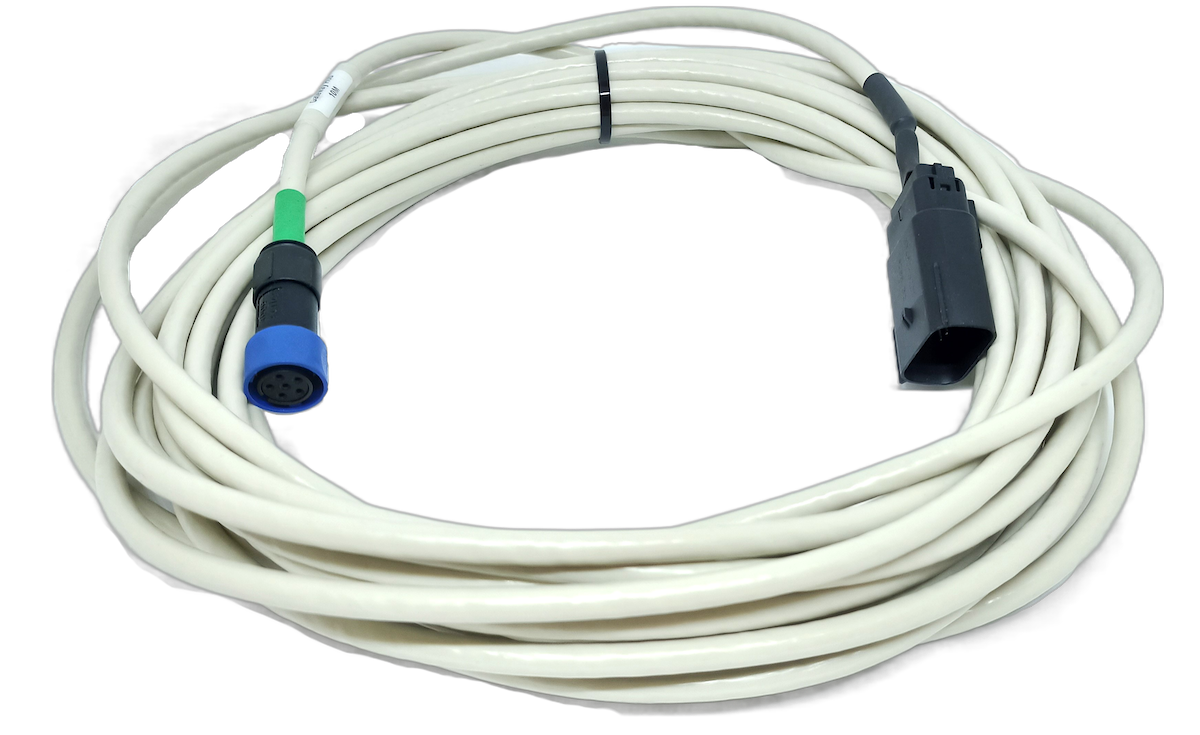

Cable SH

Sensor to Hub Cable

Length: 1m
Diameter: 6.0mm
Material: PUR
Connector 1: Bulgin PNG/01/CON/4090/X3
Connector 2: Molex 33472-0405
Connector 3: N/A

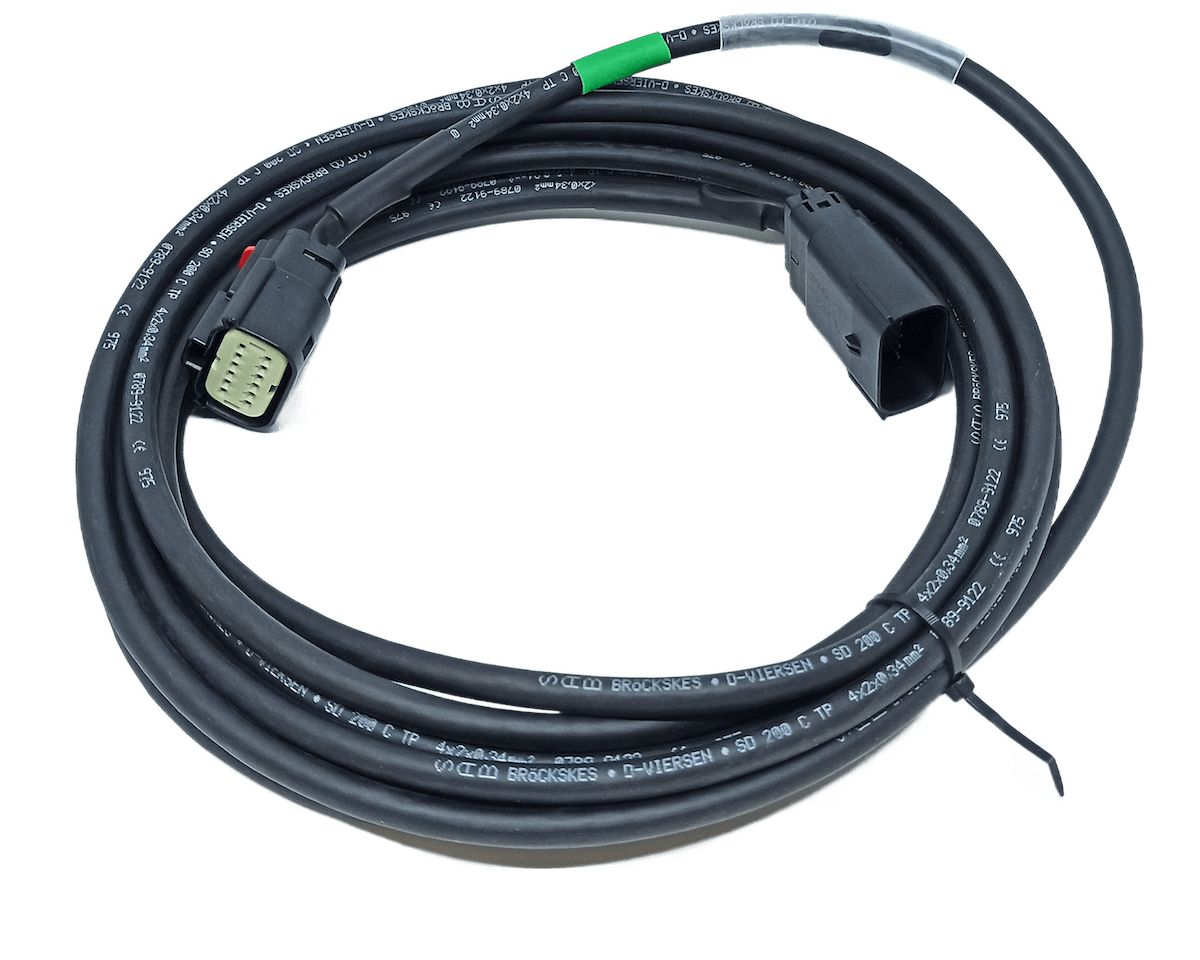

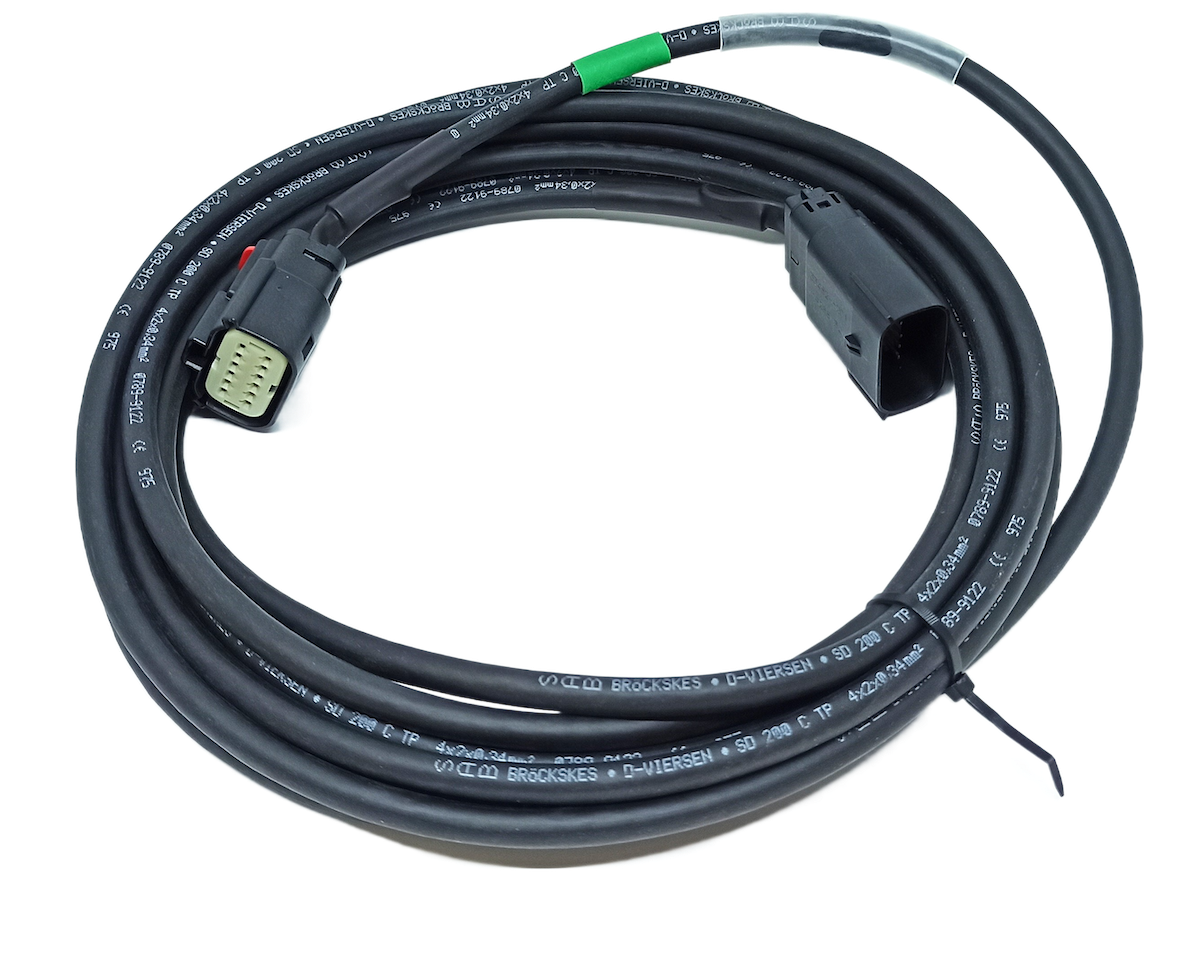

Cable HH

Gateway Hub to Hub Cable

Length: 1m
Diameter: 6.0mm
Material: PUR
Connector 1: Molex 33472-1006
Connector 2: Molex 33472-1006
Connector 3: N/A

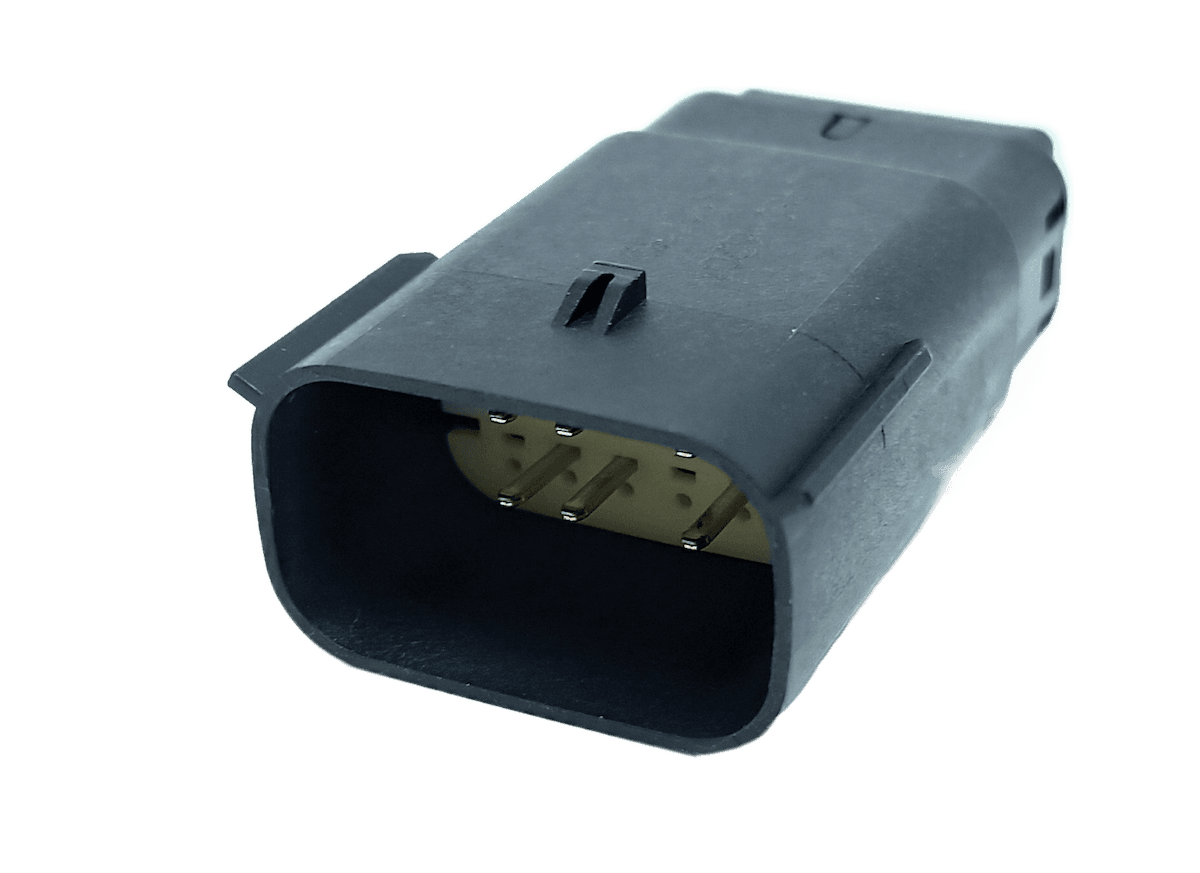

Cable HCP-1

Gateway Hub Community Plug

Length: N/A
Diameter: N/A
Material: N/A
Connector 1: Molex 33472-0405
Connector 2: N/A
Connector 3: N/A

Cable Selection Guide

TanDelta offers a comprehensive range of cables designed to meet the specific requirements of oil condition monitoring applications. Each cable type is engineered for optimal performance in different environmental conditions and system configurations.

Configuration Cables

Cable J: Configuration cables for initial setup and programming
Cable X: In-service configuration cables for live system adjustments
Cable M: Supply cables for standard in-service applications
Cable HP: High-pressure rated cables for demanding applications

Data & Connection Cables

Cable BBHaz: Hazardous area certified gateway data cables
Cable BBSt: Standard gateway data cables for general applications
Cable DB: Display to base bridge connection cables
Cable HB: Gateway hub to base bridge connection cables

System Integration Cables

Cable GH: Gateway hub to gateway connection cables
Cable SD: Sensor to display connection cables
Cable SB: Sensor to base bridge connection cables
Cable SH: Sensor to hub connection cables

Hub & Network Cables

Cable HH: Gateway hub to hub connection cables
Cable HCP-1: Gateway hub community plug connectors

Note: Most cables are available in multiple lengths (1m, 3m, 5m) to accommodate various installation requirements. Each cable is designed with specific connectors and materials optimized for its intended application. Contact our technical team for assistance with cable selection for your specific application.
