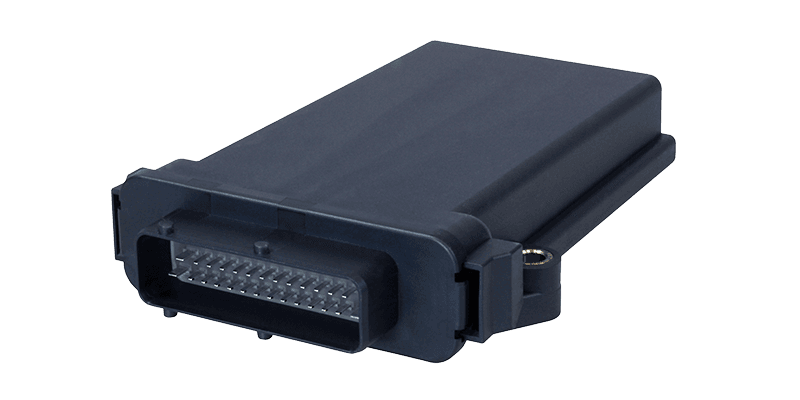

MVCU1400

Product Description

The MVCU1400 is an intelligent, CAN-controlled heavy-duty multi camera video control unit. It can process up to 4 camera images and display these images on up to 2 monitors in a variety of modes.

Product Characteristics

Connection of up to 4 compact cameras or 3 compact cameras and one motor zoom camera
Control via CAN bus (MSB 2.0), one Monitor toggle wire and/or 4 control wires and one additional control wire which provides the Option to evaluate the PWM signal (individual configuration of the 4 control wires and the Monitor toggle wires)
Main monitor output as Single, Split, Triple, PiP (randomly configurable), Quad and OSD in 4 colours
Safety function if permissible operating temperature is exceeded (power supply for all connected components is shut down)
