MC3000B - Heavy-Duty Camera

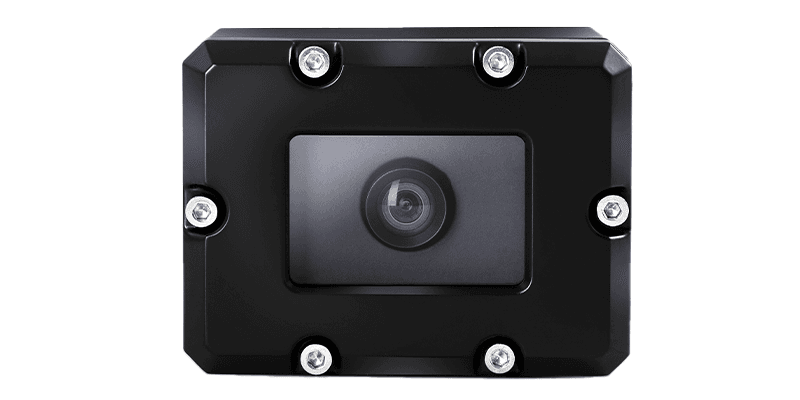

MC3000B Heavy-Duty Camera

Product Description

The MC3000B with its rugged die-cast aluminium housing reliably solves visibility problems under extreme weather and environmental conditions. With numerous available viewing angles and plug-in connections, it offers a wide range of applications on commercial vehicles and mobile machinery. The MC3000B's mechanical and electric layout is ideally suited for rough conditions in heavy-duty applications, and the device is pressure washer-proof in accordance with IP69K to guarantee a log service life and reliability. The energy-efficient automotive CMOS sensor delivers excellent image quality even in difficult lighting conditions.

Product Characteristics

  • Suitable for heavy-duty applications
  • Immersion and jet cleaning-proof (IP68 and IP69K)
  • Operating and storage temperature -60°C...+85°C
  • 2.5 W screen heater
  • Automotive CMOS sensor
  • Multiple horizontal view angles (20°, 40°, 70°, 90°, 100°, 115°)
  • On-board network integration capability, 9 V...32 V DC
