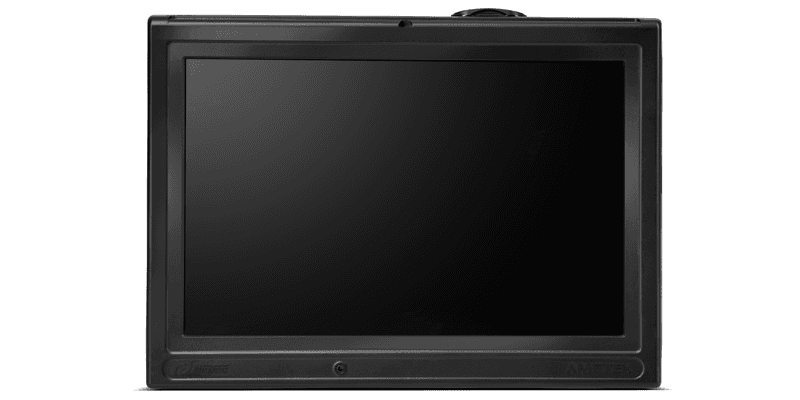

MDDE1102 10" Heavy-Duty Digital Ethernet Monitor
Product Description
The MDDE1102 is a digital monitor used in IEEE 802.3 (LAN) networks on mobile machines as well as in industrial environments. Due to its robust electrical and mechanical design, the MDDE1102 is specially designed for use in harsh environments with high mechanical loads or environmental influences. The sophisticated and simple handling of the user interface guarantees a fast and individual configuration of the numerous functions.
Product Characteristics
- 10'' monitor (25.58 cm screen diagonal)
- Resolution 1280 x 800 pixels
- TFT-LCD module (Thin Film Transistor Liquid Crystal Display) with a cover glass made of hardened soda-lime glass
- Connection of up to 2 cameras without switch and up to x cameras with switch
- Live image analysis by live ticker and bluescreen
- Automatic backlight
- Supply voltage from 9 V...36 V DC
